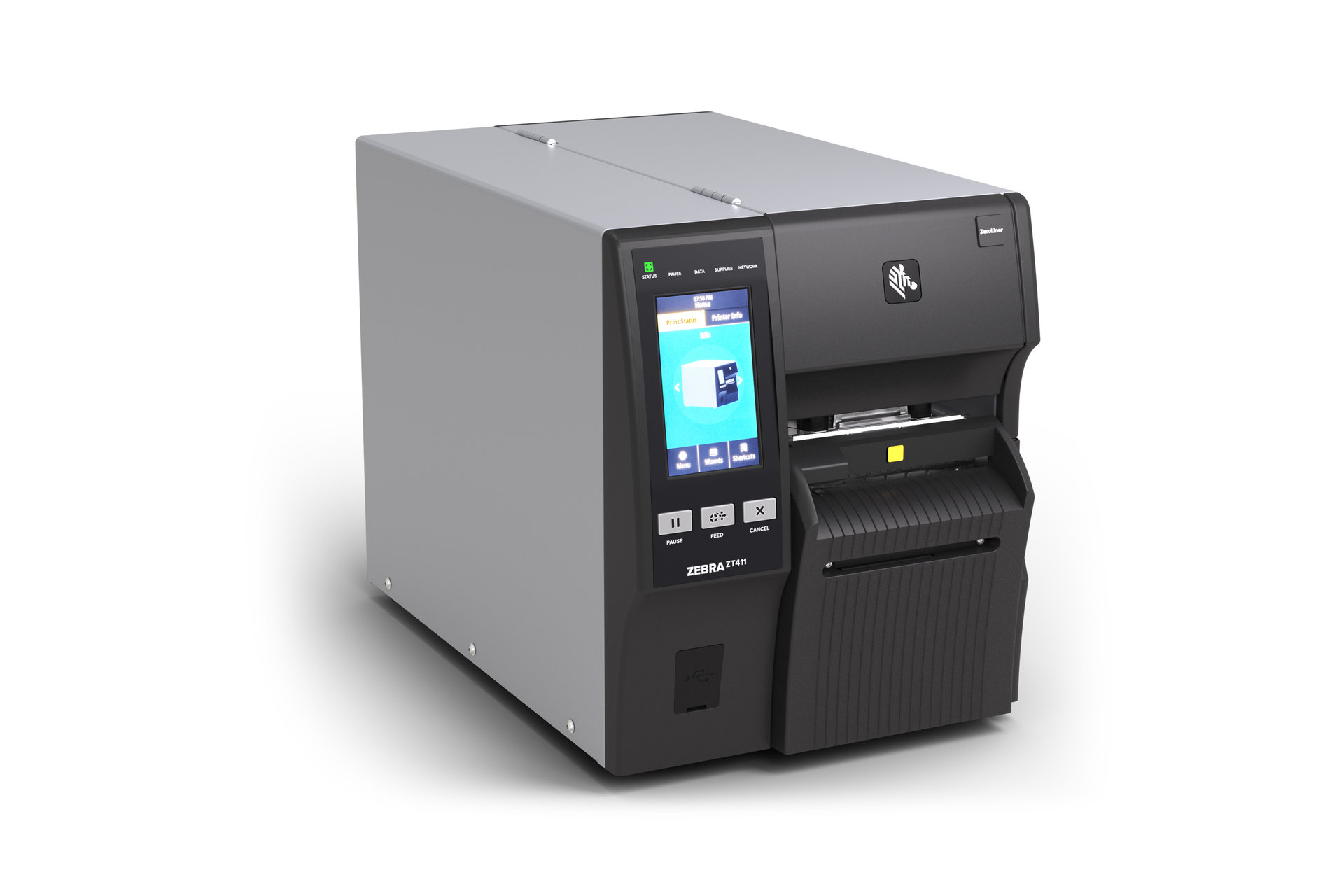

The ZT411 Linerless Industrial Printers are part of Zebra's ZT400 series, offering a solution that boosts productivity and sustainability with unique linerless printing technology. These printers are built to handle high-volume, demanding environments, and provide enhanced capabilities for applications requiring a higher level of efficiency and versatility.

Key Features of ZT411 Linerless Industrial Printers:

1. Linerless Printing Technology:

   • The ZeroLiner Linerless Printing Solution allows you to print up to 50% more labels per roll compared to traditional labels, reducing the need for frequent roll changes and minimizing downtime.
   • Eliminates the backing liners, reducing material usage, waste, and CO2 emissions, promoting sustainability.
   • Engineered for minimal adhesive buildup, ensuring smooth operation even with high-volume printing.

2. Flexible Media Handling:

   • Available in 4-inch width with 203 dpi, 300 dpi, and 600 dpi resolutions.
   • Can be customized with factory-installed or field-installable RFID technology for greater tracking capabilities.
   • Ideal for industries such as manufacturing, retail, logistics, and transportation.

3. High-Performance and Durability:

   • Designed to deliver fast throughput and maximum productivity, with high-speed printing to meet demanding operational needs.
   • A durable metal frame ensures that the ZT411 can withstand harsh industrial environments.
   • Printhead protection with long-life coating when printing in direct thermal mode to extend the lifespan of the printheads.

4. Connectivity and Integration:

   • Standard Ethernet, USB, Serial, and Bluetooth® 4.2 connectivity.
   • Optional dual-band wireless (802.11ac Wi-Fi and Bluetooth) for reliable and fast wireless connections.
   • Dual USB Host ports for connecting multiple USB devices, such as scanners or keyboards, simplifying workflows.

5. User-Friendly Interface:

   • 4.3-inch color touchscreen for easy setup and intuitive navigation.

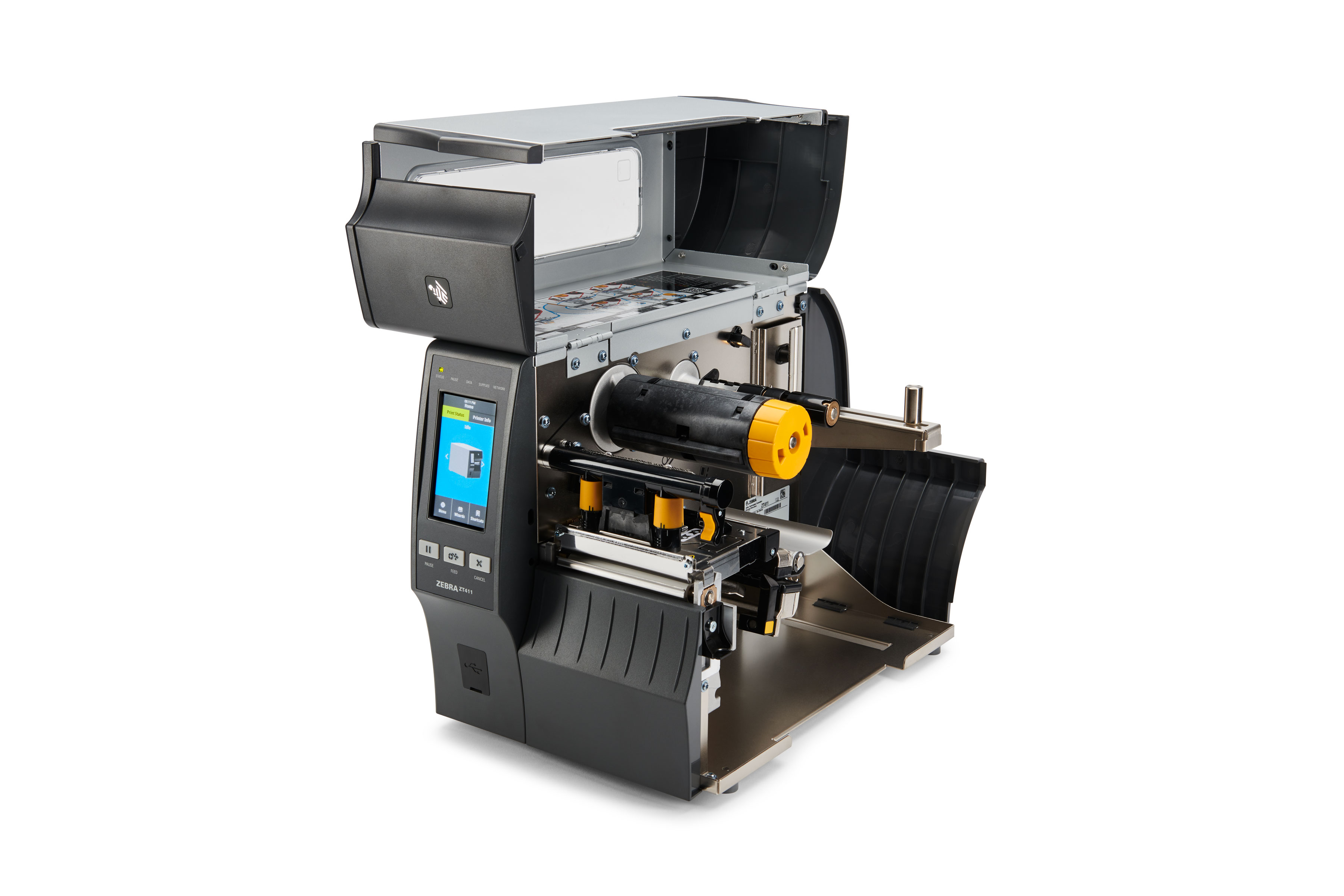

   • Color-coded media paths and lighted areas make it easier to load media and ribbons.
   • The Print Touch™ NFC feature allows quick pairing with mobile devices for easy setup.

6. Sustainability:

   • The ZT411 Linerless Printers are designed for minimal waste, with an eco-friendly approach due to the elimination of backing liners.
   • The linerless option is available in direct thermal only, which further reduces environmental impact.

7. Scalability:

   • The ZT411 is designed to evolve with your business needs, with field-installable options like RFID, additional media handling, and more to expand printer capabilities as required.

Ideal Applications:

• Manufacturing: For product labeling, parts identification, and tracking.
• Retail: For price labeling, inventory management, and shipping labels.
• Logistics and Distribution: For shipment tracking, pallet identification, and inventory control.



  Specifications

  Standard Features

  Print Methods: Thermal transfer and direct thermal printing Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window Side-loading supplies path for simplified media and ribbon loading Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.2, Dual USB Host 4.3-in. color touch display with intuitive menu for quick operation and settings management Bi-colored status LEDs for quick printer status ENERGY STAR qualified Zebra Designer Essentials: easy label design tool free at www.zebra.com/zebradesigner

  Physical Characteristics

  Dimensions (closed)

  ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H 495 mm L x 269 mm W x 324 mm H ZT421: 19.5 in. L x 13.25 in. W x 12.75 H 495 mm L x 336 mm W x 324 mm H ZT411 with Full Rewind: 19.7 in. L x 10.8 in. W x 16.7 in. H 500 mm L x 274 mm W x 425 mm H ZT421 with Full Rewind: 19.7 in. L x 13.3 in. W x 16.7 in. H 500 mm L x 338 mm W x 425 mm H Note: Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations.

  Weight

  ZT411: 36 lbs./16.33 kg ZT421: 40 lbs./18.14 kg ZT411 with Full Rewind: 48.7 lbs./22.09 kg ZT421 with Full Rewind: 55.3 lbs./25.08 kg

  Printer Specifications

  Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT411 only)
  Memory	256 MB SDRAM memory 512 MB on-board linear Flash memory
  Maximum Print Width	ZT411: 4.09 in./104 mm ZT421: 6.6 in./168 mm
  Maximum Print Speed	ZT411: 14 ips/356 mm per second ZT421: 12 ips/305 mm per second
  Media Sensors	Adjustable dual media sensors: transmissive and reflective
  Print Length	ZT411 203 dpi: 157 in./3988 mm 300 dpi: 73 in./1854 mm 600 dpi: 39 in./991 mm ZT421 203 dpi: 102 in./2591 mm 300 dpi: 45 in./1143 mm

  Media Characteristics

  Maximum Media Width	ZT411 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind ZT421 2.00 in./51 mm to 7.0 in./178 mm tear/cutter 2.00 in./51 mm to 6.75 in./171 mm peel/rewind
  Maximum Media Roll Size	8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
  Thickness	0.0023 in./0.058 mm to 0.010 in./0.25 mm
  Media Types	Continuous, die-cut, notch, black-mark, linerless media* *For use only with linerless printer model

  Ribbon Characteristics

  Standard Length	1476 ft./450 M
  Width	ZT411: 2.00 in./51 mm to 4.33 in./110 mm ZT421: 2.00 in./51 mm to 6.85 in./174 mm
  Core	1.0 in./25 mm I.D.

  Environmental

  Operating Temperature	Thermal transfer: 40º F to 104º F/5º C to 40º C Direct thermal: 32º F to 104º F/0º C to 40º C
  Storage/Transportation Temperature	-40º F to 140º F/-40º C to 60º C
  Operating Humidity	20% to 85% non-condensing
  Storage Humidity	5% to 85% non-condensing

  Programming Languages

  ZBI 2.0™—Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. ZPL and ZPL II™—Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers. EPL and EPL2™—Eltron™ Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)

  Electrical

  Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified

  Options and Accessories

  Communication	Two open communication slots to add internal cards for: Dual band 802.11ac Wi-Fi and Bluetooth Parallel (bi-directional interface) 10/100 Ethernet Applicator interface
  Media Handling	Rewind: Internally rewinds a full roll of printed labels on 3 in. core, or peels and rewinds liner (factory installed only) Peel: Front-mount, passive peel option Peel: Liner take-up—additional full-roll liner take-up spindle accommodates standard printer base Cutter: Front-mount guillotine cutter and catch tray 1 in. I.D. Core media supply hanger (ZT411 only) Ink-side in ribbon supply (ZT411 only)
  Linerless*	There are two options for linerless capability: Factory-installed linerless model (available as Direct Thermal only) Field installable linerless upgrade kit *Available on ZT411 only
  RFID	Supports tags compatible with: UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models Adaptive Encoding Technology automatically selects optimum encode settings Field installable on-metal RFID kit available* *ZT411 only (not available on the 600 dpi model)
  Keyboard Display Unit	ZKDU™ keyboard display units for stand-alone printing applications

  Barcode Symbologies

  Linear Barcodes	Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
  Two Dimensional Barcodes	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

  Agency Approvals

  Safety and EMC	IEC 62368, Class B, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3
  Product Markings	Including, not limited to, cTUVus, CE, FCC, ICES-003(B), VCCI, RCM, NOM, S-Mark, CCC, EAC, BSMI, KCC, SABS, In-Metro, BIS
