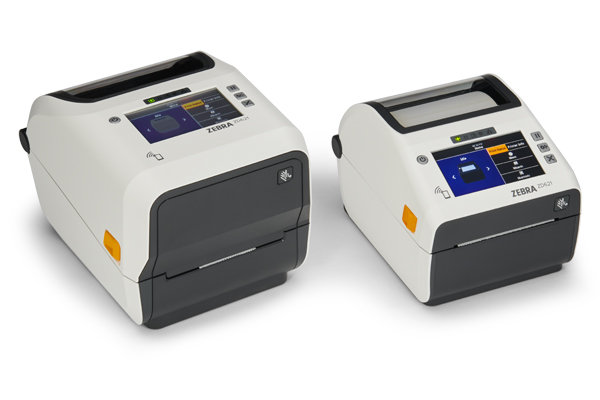

Premium features, maximum performance and unmatched security for years of quality printing in healthcare environments The Zebra ZD621-HC 4-inch Desktop Printer is tailored to meet the demanding needs of the healthcare industry. Its combination of easy-to-clean design, high-quality printing, flexibility, security, and remote management capabilities makes it an excellent choice for hospitals and healthcare organizations. This printer supports a variety of applications while ensuring the safety and security of sensitive data, helping healthcare workers focus on delivering quality care. Read more
The Zebra ZD621-HC 4-inch Desktop Printer is a healthcare-specific printer designed for high performance, durability, and security, ensuring safe and reliable printing for hospitals, clinics, and healthcare settings. It advances Zebra’s well-regarded ZD620 printers, offering a range of premium features tailored to healthcare professionals’ needs.
Designed for Healthcare Environments:
Premium Print Performance:
User-Friendly Interface:
Flexibility and Mobility:
Connectivity and Integration:
Enhanced Security:
Remote Management and Monitoring:
Future-Proof Design:
Print DNA Software Suite:
Certified Supplies and Service:
Healthcare Features
| • Healthcare preferred white color scheme • Healthcare-compliant power supply, IEC 60601-1 certified • Disinfectant-ready, easy-to-clean plastics with sealed button interface • UV-resistant housing supports UV cleaning protocols |
Standard Features
| • Print methods: Thermal Transfer or Direct Thermal • ZPL and EPL programming languages • 4.3 in. full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface • 5 status icons interface • Ethernet, Serial, USB 2.0, USB Host • Printer setup mobile app for Android & iOS via BLE (Bluetooth Low Energy 5) connection* • BLE is intended for use with Zebra printer setup mobile app only • Real Time Clock (RTC) • Media dancer for excellent print quality • OpenACCESSTM for easy media loading • Dual-wall frame construction • ENERGY STAR® certified • ZebraDesigner Essentials – easy label design tool free at www.zebra.com/zebradesigner |
Physical Characteristics
| Dimension | Direct Thermal: |
| Weight | Direct Thermal: 3.6 lbs./1.6 kg |
Printer Specifications
| Operating System | Link-OS® |
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) |
| Memory | 512 MB Flash; 256 MB SDRAM 64 MB user available non-volatile memory 8 MB user available SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi 4.27 in./108 mm for 300 dpi |
| Maximum Print Speed | 8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Firmware | ZPL II; EPL 2; XML; ZBI; PDF Direct |
Media and Ribbon Characteristics
| Label Length | Minimum: 0.25 in./6.4 mm Maximum: 39.0 in./991 mm |
| Media Width | Direct Thermal: 0.585 in./15 mm to 4.25 in./ 108 mm Thermal Transfer: 0.585 in./15 mm to 4.65 in./ 118 mm |
| Media Roll Size | Maximum outer diameter: 5.0 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
| Media Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, label or tag stock, continuous receipt paper, wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Ribbon Standard Length | 984 ft. (300 m); 243 ft. (74 m) |
| Ribbon Ratio | 1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m) |
| Ribbon Width | 1.33 in./33.8 mm — 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 meter ribbon 1 in./25.4 mm 74 meter ribbon 0.5 in./12.7 mm |
Operating Characteristics
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
Options and Accessories
| Media Handling | Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory installed or field installable) |
| Communications | 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio), (factory installed or field installable) |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed; supports all connectivity and media handling options |
| Carrying Case2 | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
| Keyboard Display Unit | Zebra Keyboard Display Unit (ZKDU) for stand- alone printing solutions |
| Media Locking Cabinet | Mechanical lock with 2 keys; Kensington® lock slot; available on ZD621 healthcare direct thermal model only |
| Enclosed Power Supply | Attached power supply accessory for cord-free installation |
Fonts/Graphics/Symbologies
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of- 5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font |
Printers Supplies
| For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer. |
Regulatory
| IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000- 3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
