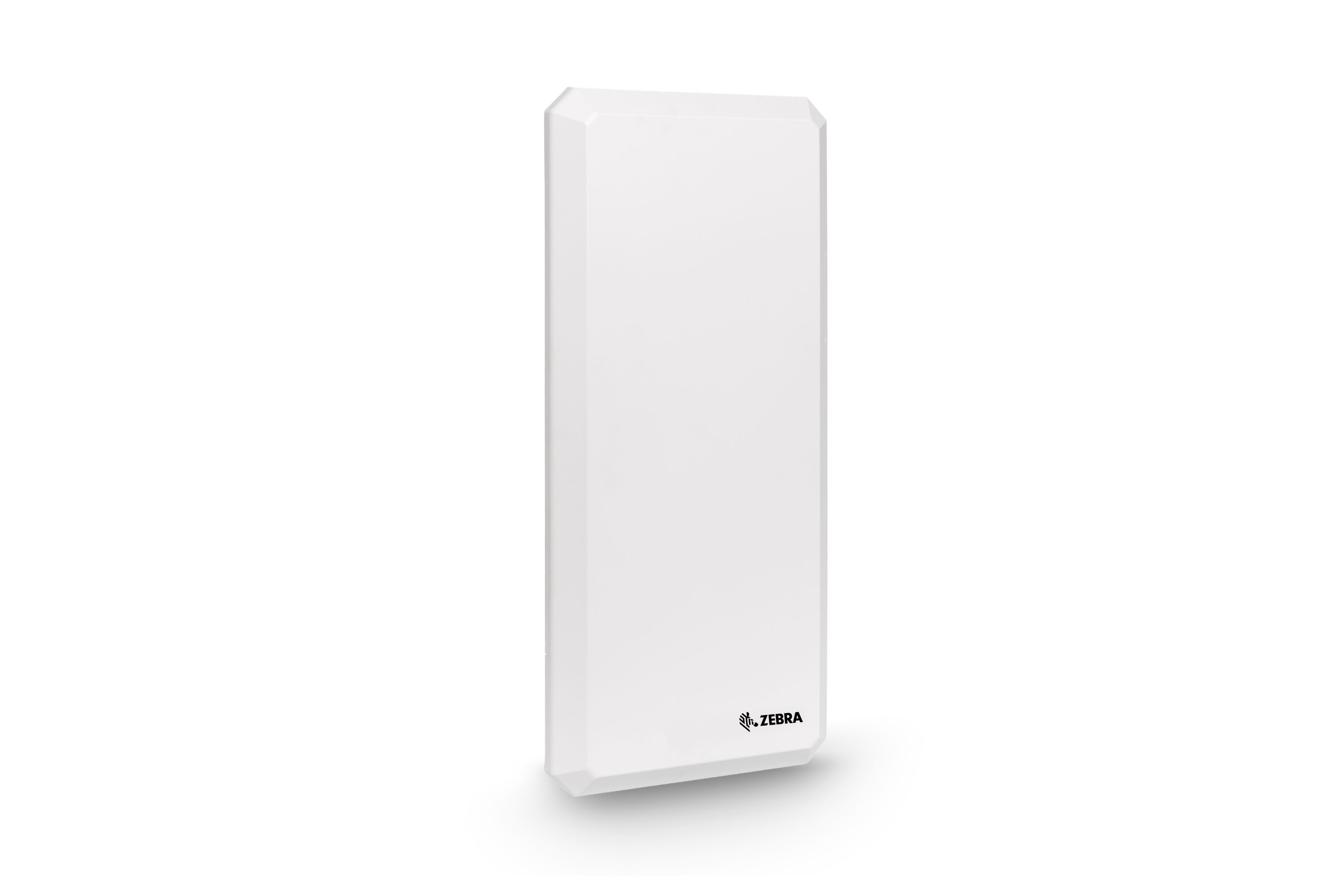

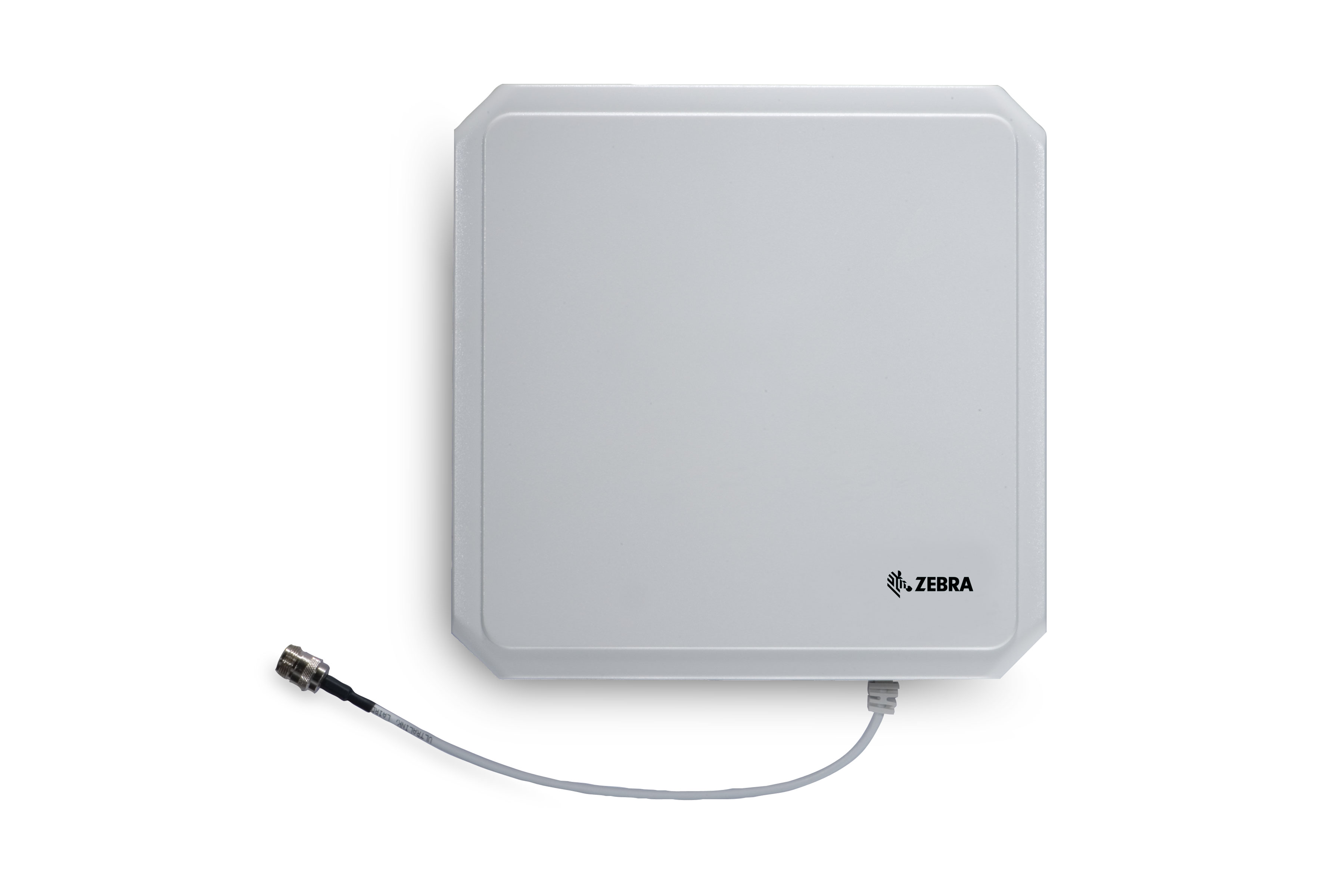

Zebra's Wide-Band RFID Antennas are designed for high-performance RFID systems that require flexible, global frequency support and robust signal coverage. These antennas are ideal for a variety of applications in industries such as logistics, retail, and manufacturing, where reliable tracking and management of assets are crucial. The AN440 and AN480 are part of Zebra’s wide-band antenna lineup, designed to handle the global UHF RFID frequencies (860-960 MHz) for maximum versatility.
Models Overview
- AN440
- Overview: The AN440 is a compact, wide-band antenna that supports UHF RFID frequencies and is designed to provide excellent performance in a variety of environments. It is versatile and durable, making it ideal for general RFID applications.
- Key Features:
- Frequency Range: Supports global UHF frequencies (860–960 MHz).
- Compact Design: Ideal for installations where space is at a premium.
- Durability: Built to withstand industrial environments with high durability standards.
- Use Case: Perfect for retail, manufacturing, and warehouse environments.
- AN480
- Overview: The AN480 is another wide-band antenna from Zebra that offers enhanced range and performance, especially in environments with greater distances between tags and antennas. It provides high efficiency in applications requiring strong signal strength.
- Key Features:
- Frequency Range: Supports global UHF RFID frequencies (860–960 MHz).
- High Gain: Offers superior read range for applications requiring long-range performance.
- Durability: Designed for tough environments, ensuring consistent performance in demanding conditions.
- Use Case: Well-suited for large warehouses, supply chain management, and distribution centers.
Comparison Table: Wide-Band RFID Antennas
| Model | Frequency Range | Dimensions (L x W x H) | Weight | Gain | Durability | Installation | Typical Applications | Assumed Price (USD) |
|---|
| AN440 | UHF (860–960 MHz) | 8.2 x 8.2 x 1.5 inches | ~0.55 kg | 6 dBic | Industrial Grade | Ceiling/Walls/Floor | Retail, Warehouse, Asset Tracking | $175 - $250 |
| AN480 | UHF (860–960 MHz) | 12.0 x 12.0 x 2.0 inches | ~1.0 kg | 9 dBic | Industrial Grade | Ceiling/Walls/Floor | Warehouses, Logistics, Distribution Centers | $250 - $350 |
Key Specifications
Frequency Range:
- Both the AN440 and AN480 support global UHF RFID frequencies (860–960 MHz), making them suitable for use in regions with different RFID standards.
Dimensions & Weight:
- The AN440 is more compact and lightweight, making it ideal for smaller installations or where space is limited.
- The AN480 is larger, offering superior range, which is beneficial in larger environments where extended coverage is required.
Gain:
- AN440: Offers a 6 dBic gain, suitable for medium-range RFID applications.
- AN480: Has a higher 9 dBic gain, providing longer read ranges and is better suited for large-scale environments.
Durability:
- Both antennas are built to withstand industrial conditions, including exposure to dust, moisture, and temperature variations, ensuring long-term reliability.
Installation:
- Both models can be mounted on ceilings, walls, or floors, offering flexibility in installation for various applications.
Typical Applications
AN440:
- Retail: Tracking of goods and inventory in store environments.
- Warehousing: Efficient inventory management in smaller warehouses or distribution centers.
- Asset Tracking: Real-time monitoring of equipment and assets in various industries.
AN480:
- Large Warehouses: Ideal for environments with greater distances and higher traffic, such as large distribution centers and logistics hubs.
- Logistics & Supply Chain: Improved tracking of goods in transit or stored across vast areas.
- Manufacturing: Ensures efficient management and tracking of materials on production lines
