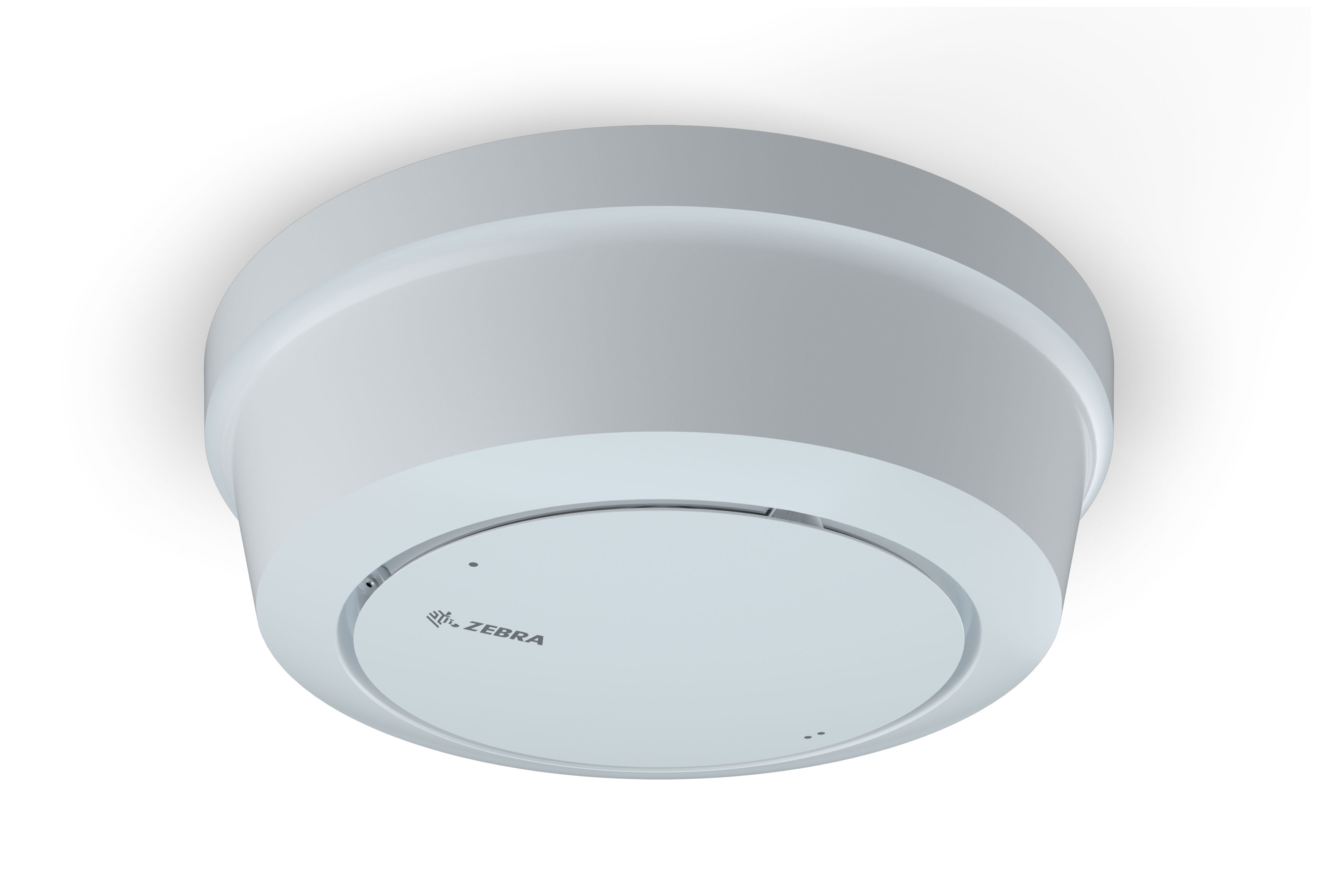

The Zebra SN5604 is a Retail Sensing Appliance designed to support advanced inventory management, asset tracking, and loss prevention applications in the retail industry. It leverages RFID technology to offer real-time visibility into the movement and location of items within a retail environment, improving operational efficiency, inventory accuracy, and customer service.

The SN5604 appliance integrates seamlessly into Zebra's broader RFID ecosystem and is designed to work in conjunction with Zebra RFID readers, antennas, and software platforms.

Key Features of the Zebra SN5604 Retail Sensing Appliance

1. RFID Enabled:

   • The SN5604 utilizes UHF RFID technology to provide detailed tracking of products in real-time, whether in-store or across supply chains.

2. Advanced Sensors:

   • It includes embedded sensors that provide additional data for inventory management, such as counting items, monitoring temperature, or detecting movement.

3. Enhanced Loss Prevention:

   • The appliance is designed to help prevent theft by monitoring items within the store and providing alerts when suspicious activity is detected.

4. Integration with Zebra Systems:

   • It integrates easily with Zebra’s suite of RFID hardware and software, allowing for seamless deployment across retail environments.

5. Real-Time Data:

   • Provides instant access to real-time inventory data, enhancing visibility for both employees and management. This helps in stock replenishment, reducing out-of-stock situations, and improving customer satisfaction.

6. Compact and Flexible Design:

   • The appliance is designed to fit into the store environment without taking up too much space, and it can be installed on walls or ceilings, offering flexibility for a variety of retail layouts.

7. Energy Efficient:

   • The SN5604 is designed to be energy-efficient, ensuring that it does not consume excessive power while running continuous monitoring tasks.

Applications

• Inventory Management:

  • Provides real-time inventory counts, helping retailers ensure that shelves are stocked and items are correctly inventoried.

• Asset Tracking:

  • Helps with tracking high-value assets and tools used in-store, ensuring they are accounted for at all times.

• Loss Prevention:

  • Tracks products as they move throughout the store and provides alerts when items are moved without being purchased or checked out.

• Supply Chain Management:

  • The SN5604 is effective in managing stock movement between different store locations or warehouses, reducing stockouts and overstock situations.




    Specifications

    Sensing Network Appliance (SNAP) SmartLens Sensor

    Physical Characteristics	Dimensions: 21.3 in. diameter x 7.8 in. 541 mm diameter x 197 mm Weight (SN5604): 10.5 lbs/4.8 kg
    Environmental Characteristics	Operating temp: 32º F to 122º F/0º C to 50º C Storage temp: 40º F to 158º F/-40º C to 70º C Humidity: 85% RH, non-condensing at 70º C ESD: ± 8 kV air discharge; ± 6 kV contact discharge
    RFID Reader	Air protocols: EPCglobal UHF Class 1 Gen2, ISO 18000-6C Frequency: Global Reader: 902 MHz – 928 MHz (North America); 865 MHz – 868 MHz (EU) US (only) Reader: 902 MHz-928 MHz Radiated power: Up to 4W EIRP Memory: Flash 512 MB; DRAM 256 MB Management protocols: RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP Network services: DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP Network stack: IPv4 and IPv6 Security: Transport Layer Security Ver 1.2, FIPS-140
    Ethernet Ports	Input: Ethernet auto sensing/negotiation 802.3af/at compliant port for SNAP communication and power supply

    Transition Point SmartLens Sensor

    Physical Characteristics	Dimensions (ST5500): 47.0 in. x 22.0 in. x 9.0 in. 1194 mm x 559 mm x 229 mm Weight (ST5500): 23 lbs/10.4 kg
    Environmental Characteristics	Operating temp: -4º F to 131º F/-20º C to 55º C Storage temp: -40º F to 158º F/-40º C to 70º C Humidity: 95% RH non-condensing ESD: ± 15 kV air discharge; ± 8 kV direct discharge; ± 8 kV indirect discharge
    Power Requirements	Input power: 18W max (37-55 VDC POE)

    Backroom SmartLens Sensor

    Physical Characteristics	Dimensions (SR5502): 17.0 in. x 10.2 in. x 7.0 in. 432 mm x 260 mm x 178 mm Weight (SR5502): 5.5 lbs/2.5 kg
    Environmental Characteristics	Operating temp: -4º F to 131º F/-20º C to 55º C Storage temp: -40º F to 158º F/-40º C to 70º C Humidity: 95% RH non-condensing ESD: ± 15 kV air discharge; ± 8 kV direct discharge; ± 8 kV indirect discharge
    Power Requirements	Input power: 18W max (37-55 VDC POE)

    Point of Sale (POS) SmartLens Sensor

    Physical Characteristics	Dimensions (SR5502): 12 in. x 12 in. x 4 in. 305 mm x 305 mm x 102 mm Weight (SR5502): 4.0 lbs/1.8 kg
    Environmental Characteristics	Operating temp: -4º to 131º F/-20º to 55º C Storage temp: -40º to 158º F/-40º to 70º C Humidity: 95% RH non-condensing ESD: ± 15 kV air discharge; ± 8 kV direct discharge; ± 8 kV indirect discharge
    Power Requirements	Input power: 13W max (37-55 VDC POE)
    Markets and Applications

    Automated inventory/tracking

    • Real-time inventory
    • Product location
    • Dynamic replenishment
    • POD/delivery validation
    • Vendor compliance
    • Planogram compliance
    • Markdown management

    In-store fulfillment

    • Click and Collect/BOPIS/Reserve
    • Ship from store
    • Optimize picking process

    Asset protection

    • Point of sale bypass detection
    • Administrative shrink
    • Identify return fraud
    • Asset tracking
