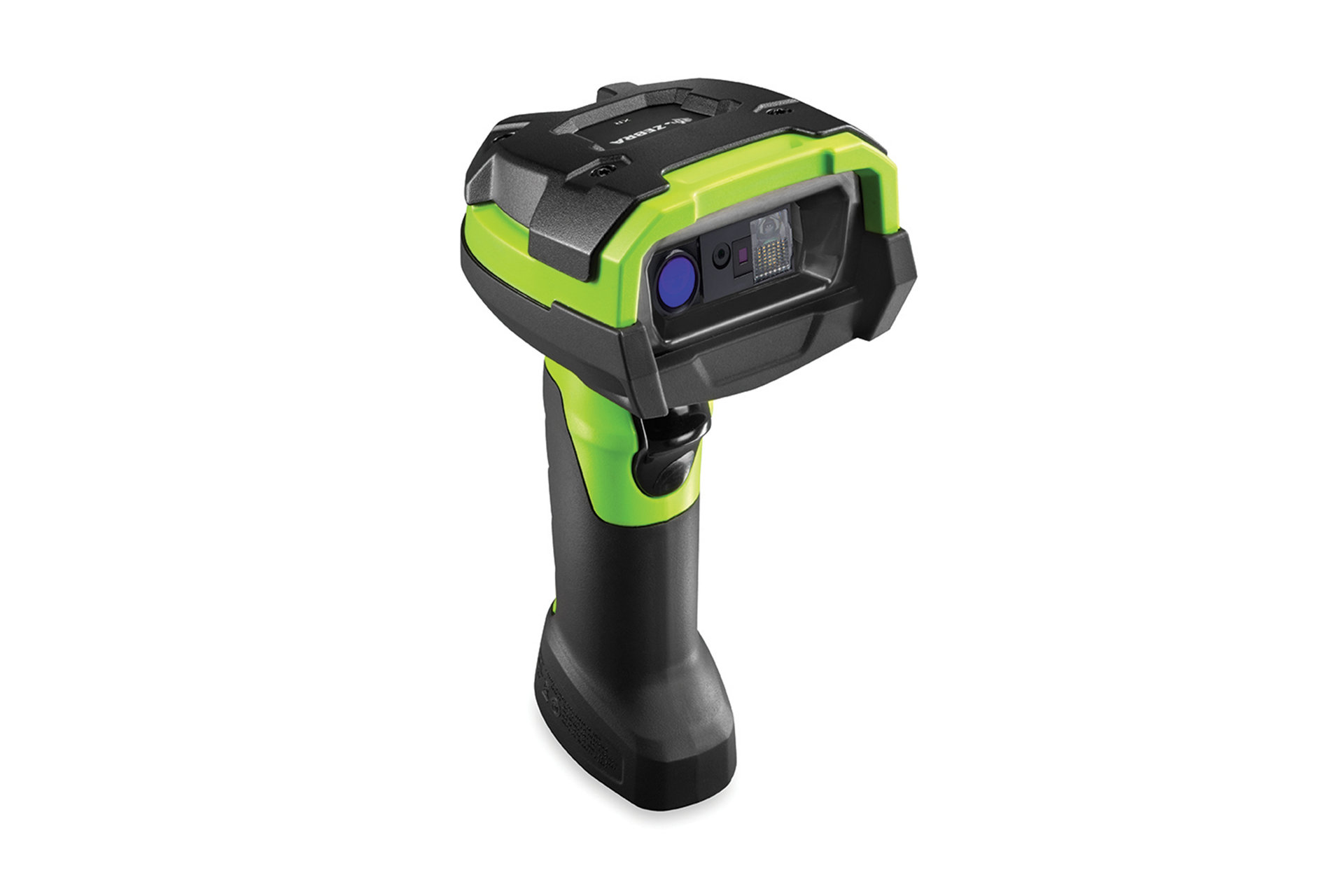

The DS3600-HD is another model from the Zebra DS3600 series of ultra-rugged barcode scanners. The "HD" version refers to High Density scanning capabilities, making it especially suited for environments where very small barcodes or high-density barcodes need to be read accurately.

Key Features:

• High-Density Barcode Scanning: The DS3600-HD is specifically designed to read high-density 1D and 2D barcodes, including those that are small, dense, or printed with high precision.
• Ultra-Rugged Design: Like the DS3600-ER, the DS3600-HD is built to withstand extreme environments, offering IP65-rated protection against dust and water.
• Durability: It can handle drops of up to 8 feet onto concrete and continue working reliably. It’s built for environments like warehouses, manufacturing plants, and retail.
• Versatile Scanning: Supports scanning of both 1D and 2D barcodes, including QR codes, DataMatrix codes, and more.
• Extended Range: For scanning from a distance, particularly useful in warehouse settings or situations where scanning items on higher shelves or in hard-to-reach places is required.
• Superior Performance on Damaged Barcodes: It performs well on damaged, poorly printed, or low contrast barcodes.
• Connectivity Options: Offers a range of connectivity options, including Bluetooth, USB, and other wireless systems to easily integrate into existing setups.
• Long Battery Life: Optimized for full-day usage with extended battery life.

Uses:

• Retail and Grocery Stores: Ideal for scanning small, high-density barcodes found on items like electronics, jewelry, and medical devices.
• Healthcare: Scanning high-density barcodes on medication labels, patient wristbands, and other small items.
• Manufacturing: Useful for tracking high-density barcodes on parts, components, and serial numbers in industrial environments.
• Warehouse/Logistics: Scanning small or dense barcodes on inventory, shipping labels, or asset tracking tags in large facilities.



  Specifications

  Physical Characteristics

  Dimensions	Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D
  Weight	Corded: 10.9 oz./309 g Cordless: 14.5 oz./411 g
  Input Voltage Range	Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
  Operating Current	DS3608-HD (corded): 360 mA (RMS typical)
  Standby Current	DS3608-HD (corded): 100 mA (RMS typical)
  Color	Industrial Green
  Supported Host Interfaces	USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
  Battery	PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
  User Indicators	Direct decode indicator; LEDs; beeper; vibration

  Performance Characteristics

  Scans per Full Charge	100,000+
  Image Capture	Basic
  Illumination	Two (2) warm white light LEDs
  Aimer	655 nm laser
  Imager Field of View	Horizontal: 31°, Vertical: 23°
  Image Sensor	1,280 x 960 pixels
  Minimum Print Contrast	15% minimum reflective difference
  Skew/Pitch/Roll	Skew: ± 60° Pitch: ± 60° Roll: ± 360°

  Decode Capabilities2

  1D	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
  2D	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  IUID Support	Supports IUID parsing, the ability to read and separate IUID fields per application requirements

  User Environment

  Operating Temp.	Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C
  Storage Temp.	-40° F to 158° F/-40° C to 70° C
  Humidity	5% to 95% non-condensing
  Tumble Specification	7500 3.3 ft./1.0 m tumbles
  Drop Specification	DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
  Sealing	Scanner: IP65 and IP68 per applicable IEC sealing specifications; FLB cradle: IP65
  ESD	Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
  Ambient Light Immunity	0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

  Utilities and Maintenance

  123Scan	Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan
  Scanner SDK	Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK
  Scanner Management Service (SMS)	Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms
  Network Connect	Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network with no additional conversion equipment. For more information, visit www.zebra.com/NetworkConnect

  Wireless Connectivity

  Bluetooth Radio	Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles
  Data Rate	3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy
  Radio Range	Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

  Regulatory

  Environmental	RoHS EN 50581: 2012
  Electrical Safety	EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
  Laser/LED Safety	International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED); UL, VDE and CU recognized laser component
  EMI/RFI	IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B

  Decode Ranges (Typical)3

  Symbology/Resolution	Near/Far
  Code 128: 3 mil	2.0-3.0 in./5.1-7.6 cm
  Code 128: 20 mil	2.2-26.0 in./5.6-66.0 cm
  Datamatrix: 10 mil	1.0-9.0 in./ 2.5-22.9 cm
  PDF417: 5 mil	2.0-6.0 in./5.1-15.2 cm

  Warranty
